| উৎপত্তি স্থল | জার্মানি |
| পরিচিতিমুলক নাম | SIEMENS |
| সাক্ষ্যদান | CE ROHS |
| মডেল নম্বার | MC00160783F01 |

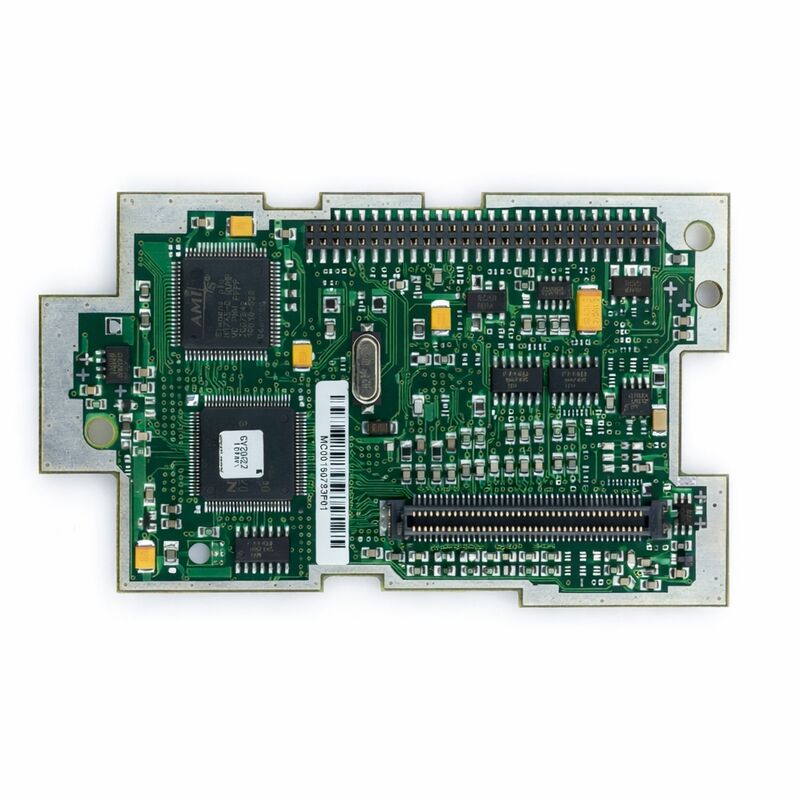

The MC00160783F01 is best positioned as a CPU কন্ট্রোল বোর্ড / মেইন কন্ট্রোল বোর্ড for the Siemens MICROMASTER 430 inverter platform.
Listings for this exact part describe it as an MM430 ইনভার্টার CPU কন্ট্রোল বোর্ড, while Siemens’ MM430 documentation shows the drive uses a detachable I/O board and a modular internal layout, which fits the role of a central control board inside the inverter rather than a simple terminal card.
For product-page use, this board is most accurately described as the internal control PCB that supports inverter logic, operating coordination, and board-level restoration in MM430 drives.
In practical maintenance work, this kind of board is selected by exact part number and installed inverter family first, because a mismatch at the CPU board level can affect the full drive platform rather than one external interface alone.
| Item | Details |
|---|---|
| Brand | Siemens |
| Part Number | MC00160783F01 |
| Board Type | Inverter CPU Control Board |
| Board Role | Main control / motherboard class PCB |
| Associated Drive Family | MICROMASTER 430 |
| Installation Context | Internal inverter control section |
| Replacement Focus | Exact board-level replacement |
| Typical Service Use | Drive repair and control-board restoration |
This board is suitable for MM430 ড্রাইভ মেরামত, ইনভার্টার মাদারবোর্ড প্রতিস্থাপন, and কন্ট্রোল-বোর্ড পুনরুদ্ধার in installations that already use the same Siemens drive family. Siemens positions the MICROMASTER 430 as a drive platform for পাম্প এবং ফ্যান, and the wider MM420/430/440 family documentation also points to applications such as কনভেয়িং সিস্টেম, মেটেরিয়াল ট্রান্সপোর্ট, এবং মেশিন টুলস, which makes this board relevant anywhere an MM430 inverter remains in service in those environments.
MC00160783F01 is the right kind of spare when the installed drive already depends on the MM430 কন্ট্রোল আর্কিটেকচার and the repair needs to stay within the original inverter platform.
A board at this level is more than a signal accessory: it belongs to the drive’s internal control structure, so exact part-number matching is far more useful than using a generic “inverter PCB” replacement path.
Q1. What type of board is MC00160783F01?
MC00160783F01 is an ইনভার্টার CPU কন্ট্রোল বোর্ড used as a main control PCB in the MICROMASTER 430 drive family.
Q2. What does this board do in the system?
Its role is to support the inverter’s core control layer. Siemens documentation for MM430 shows a modular internal design with a detachable I/O board, which is consistent with MC00160783F01 functioning as a central internal control board rather than an external terminal-only module.
Q3. What should be checked when selecting MC00160783F01?
The key checks are the সঠিক পার্ট নম্বর, the ইনস্টল করা ড্রাইভ ফ্যামিলি, and whether the inverter is built on the MICROMASTER 430 platform.
At this level, family match matters as much as connector appearance.
Q4. How should the key specification be understood?
The most important identifier here is not a voltage or current rating but the বোর্ডের ভূমিকা এবং ড্রাইভ ফ্যামিলি: CPU কন্ট্রোল বোর্ড for MM430.
That is the main compatibility point for board-level replacement.
Q5. How should faults be diagnosed before replacing this board?
Start by separating a প্রধান কন্ট্রোল ফল্ট from an I/O-সাইড ফল্ট or a peripheral connection issue. Siemens support references for MICROMASTER drives note that an I/O-board fault can present separately, so if the drive’s broader internal control behavior is affected rather than only the terminal-side interface, the CPU board becomes a stronger candidate.
