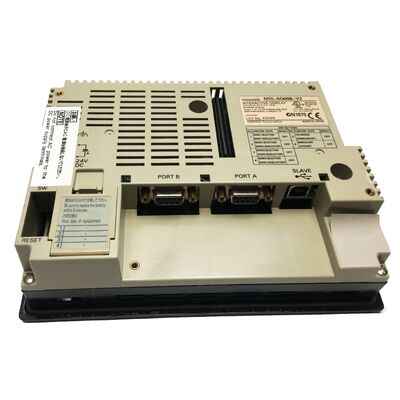

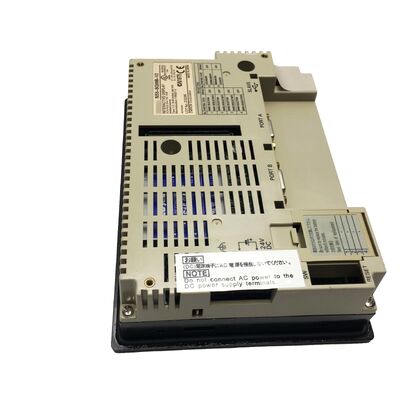

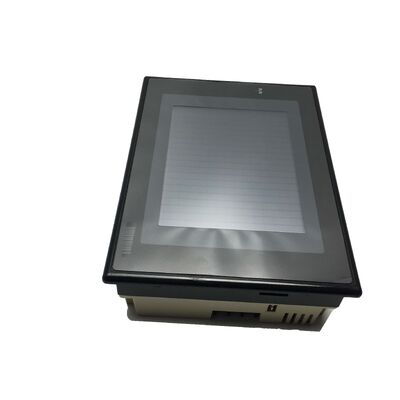

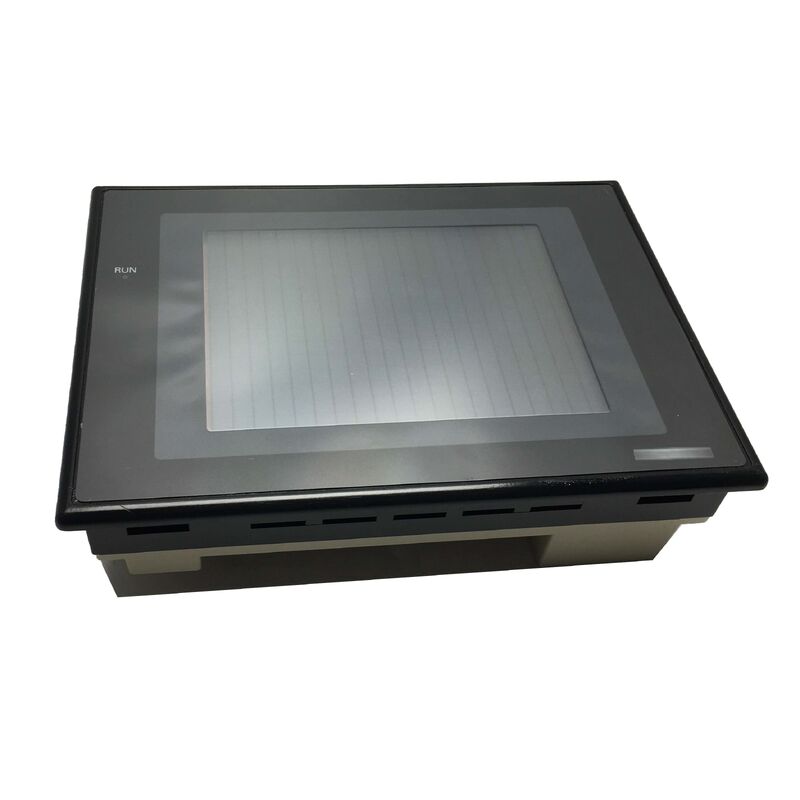

NS5-SQ00B-V2 New Sealed OMRON Touch Panel NS5SQ00BV2

The Omron NS5-SQ00B-V2 is a compact programmable terminal from the NS Series, built for operator control, equipment monitoring, and machine interface tasks in industrial environments.

With its 5.7-inch STN display, 320 x 240 resolution, and 24V DC power input, it provides a practical balance between screen visibility, panel efficiency, and dependable day-to-day operation.

This model is well suited for control panels where space matters but a dedicated operator interface is still essential. In a production setting, an HMI like the NS5-SQ00B-V2 is often the point where operators interact directly with the machine.

• Compact HMI for Industrial Control: Provides a dedicated operator terminal in a compact footprint for applications where clear local visualization remains important.
• 5.7-Inch STN Display: Practical viewing area for status pages, alarm displays, and control menus while keeping panel size under control.
• 320 x 240 Resolution: Suitable for structured process pages, numeric data, function keys, and machine status graphics.
• 24V DC Power Input: Matches common industrial control standards for easier integration in OEM machines and automation panels.
• Low Power Demand: Maximum power consumption of 15 Watts reduces heat load and simplifies power budgeting.
• Designed for Industrial Environments: Intended for operation in environments without corrosive gases for stable long-term service.

The NS5-SQ00B-V2 is a good fit for machines and systems where operators need direct access to process information but the installation does not require a large-format touch interface.

It can serve effectively in packaging systems, material handling equipment, compact automation stations, utility skids, and general industrial control panels.

In actual plant use, an HMI is judged less by marketing terms and more by how well it performs routine tasks. Operators need screens that are easy to understand, while maintenance teams need accessible alarm information.

The display size is manageable, the resolution is appropriate for organized machine graphics, and the 24V DC supply keeps integration straightforward. The internal battery life also supports long service intervals for scheduled maintenance planning.

The NS5-SQ00B-V2 is mainly used as an industrial human-machine interface (HMI) for monitoring and operating automated equipment. It allows operators to view machine status, read process values, acknowledge alarms, and access control screens from the front of the panel.

Yes. A 5.7-inch screen is widely considered practical for compact and mid-size machine interfaces. It provides enough space for numerical values, menu navigation, alarm messages, and simplified process graphics without taking up excessive panel area.

The 24V DC supply requirement means the terminal fits easily into standard industrial control systems, since 24V DC is one of the most common panel voltages used worldwide. This simplifies integration with existing power supplies and reduces the need for additional conversion hardware.

Power consumption matters because it affects cabinet power budgeting, thermal load, and supply sizing. A terminal with a maximum demand of 15 Watts is relatively manageable in a typical industrial panel and helps reduce unwanted heat buildup in enclosed cabinets.

The NS5-SQ00B-V2 is intended for environments without corrosive gases, which is standard for most industrial HMI equipment. The 5-year battery life allows service teams to plan preventive replacement during scheduled downtime rather than waiting for battery-related issues.
